雙波瓣載波抑制(DSB-SC)之光學平衡偵測器








DSB-SC可以有效利用電磁波的能量, 而利用三條雷射光束的互相干涉, 以及光束的偏極態調整, 亦可以達到DSB-SC的效果, 除此之外, 還可達成降低背景雜訊, 雷射光的微小能量波動雜訊的要求, 使得光學偵測可以接近量子限制(Quantum-limited)的目標.


















2011年5月25日 星期三

2011年5月22日 星期日

如何在 32 位元的環境編譯 Android 2.3

如果從 AOSP 網站下載 Android 2.3 後的版本,會發現編譯時似乎需要在 64 位元的環境。那麼如果已有現成的 32 位元環境,該如何編譯 Android 2.3 呢?

此時只要改動幾個 makefile 就好了。

首先,在 build/core/main.mk 找到這行:

ifneq (64,$(findstring 64,$(build_arch)))

將它改成:

ifneq (i686,$(findstring i686,$(build_arch)))

然後,分別找到以下數個 makefile,然後找到 -m64 這個,並改成 -m32

1. external/wpa_supplicant_6/wpa_supplicant/Android.mk

2. external/clearsilver/java-jni/Android.mk

3. external/clearsilver/cs/Android.mk

4. external/clearsilver/cgi/Android.mk

5. external/clearsilver/util/Android.mk

搞定,收工。

Google I/O 2011: Android Open Accessory API and Development Kit (ADK)

網路上看到兩個Demo....



IOIO(讀"YoYo")是專為Android所設計的開發板。

2011年5月18日 星期三

Java Native Interface (JNI) 的使用時機及影響

JNI的使用時機及影響

上篇的實作後,整理一下JNI的使用時機及影響:

什麼時機下應該使用JNI
下面提出幾個項目避免使用JNI:
1、JAVA程式和本地程式使用TCP/IP或者IPC。
2、當用JAVA程式連接本地資料庫時,使用JDBC提供的API。
3、JAVA程式可以使用分散式物件技術,如JAVA IDL API。
上述三項共同點是JAVA和C 處於不同的執行緒,或者不同的機器上。這樣當C程式部分異常時,會影響到JAVA程式。

接著那何時需要使用JNI呢? 下列情況是在同一進程內無法避免JNI的使用:
1、程式當中使用到了JAVA API 沒有提供的特殊系統環境加上使用跨進程操無法不現實情況下,如與硬體進行通訊時。
2、想使用一些已經有的本地庫(native library),但又不想付出跨進程調用時的延宕(overhead),如效率,記憶體,資料傳遞方面。
3、JAVA程式當中的一部分代碼對效率要求非常高,如演算法計算,繪圖等。
總之,只有當你必須在同一進程中調用本地代碼(nativecode)時,建議使用JNI。

JNI的副作用:
1、程式失去跨平臺。如想跨平臺在不同的系統環境下須重新編譯C語言部分。
2、影響程式的穩定,本地代碼的不當使用可能導致整個程式損壞或當掉。
通用規則是應該讓本地方法集中在少數幾個類(class)中,減少JAVA和C之間的通訊。

以上詳細內容出至The Java™ Native Interface Programmer's Guide and Specification;請參閱:
1.3 Implications of Using the JNI
1.4 When to Use the JNI

2011年5月12日 星期四

[新聞]Ggoogle公佈:Android SDK 2.3.4 及 3.1

這幾天Google I/O大會,今天已經可以下載到新版的SDK,有興趣可以上網更新。
http://developer.android.com/sdk/index.html


另外還有一套新的開發環境:
Android Open Accessory Development Kit
http://developer.android.com/guide/topics/usb/adk.html
Google發表Android Open Accessory標準與ADK開發工具(基於Arduino)
http://chinese.engadget.com/2011/05/10/google-announces-android-open-accessory-standard-arduino-based/

另外"Android@Home" 的概念:
http://3c.msn.com.tw/View.aspx?ArticleID=59672
Google 發布Android@Home,讓你用Android 設備控製家電
http://www.androidnoodles.com/2011/05/google-released-androidhome/
谷歌I/O:打造Android@Home智慧家庭
http://www.mobile01.com/topicdetail.php?f=423&t=2149611
看來要學學ZigBee或是Z-Wave了.....

2011年5月9日 星期一

[ Android OpenGL ES 教學(六)] 觸控控制

基礎閱讀:[ Android OpenGL ES 教學(五)] 貼皮技術 發表在 http://cheng-min-i-taiwan.blogspot.com/2011/05/android-opengl-es_09.html


在Google Android SDK所附的範例ApiDemo內的com.example.android.apis.graphics套件中的TouchRotateActivity.java的程式,TouchRotateActivity繼承了Activity類別,在TouchRotateActivity類別中建立了TouchSurfaceView物件,並利用setFocusableInTouchMode()函式來啟用觸控功能,TouchRotateActivity類別中的onCreate()事件處理程式的列表如下:


protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);

// Create our Preview view and set it as the content of our
// Activity
mGLSurfaceView = new TouchSurfaceView(this);
setContentView(mGLSurfaceView);
mGLSurfaceView.requestFocus();
mGLSurfaceView.setFocusableInTouchMode(true);
}


在TouchSurfaceView類別中,可以發現兩個onTrackballEvent()和onTouchEvent()事件函件,經由這兩個事件來改變立方體的觀察角度,這兩個事件程式列表如下:


@Override public boolean onTrackballEvent(MotionEvent e) {
mRenderer.mAngleX += e.getX() * TRACKBALL_SCALE_FACTOR;
mRenderer.mAngleY += e.getY() * TRACKBALL_SCALE_FACTOR;
requestRender();
return true;
}

@Override public boolean onTouchEvent(MotionEvent e) {
float x = e.getX();
float y = e.getY();
switch (e.getAction()) {
case MotionEvent.ACTION_MOVE:
float dx = x - mPreviousX;
float dy = y - mPreviousY;
mRenderer.mAngleX += dx * TOUCH_SCALE_FACTOR;
mRenderer.mAngleY += dy * TOUCH_SCALE_FACTOR;
requestRender();
}
mPreviousX = x;
mPreviousY = y;
return true;
}

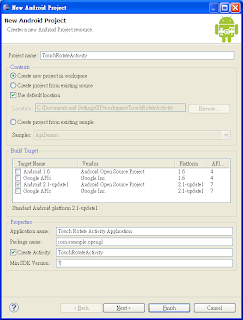

1. 建立新專案

2. 把在Google Android SDK所附的範例ApiDemo內的com.example.android.apis.graphics套件中的TouchRotateActivity.java的程式複製到新專案所產生的程式中,完整程式如下:

package com.example.opengl;

import javax.microedition.khronos.egl.EGLConfig;
import javax.microedition.khronos.opengles.GL10;

import android.app.Activity;
import android.content.Context;
import android.opengl.GLSurfaceView;
import android.os.Bundle;
import android.view.MotionEvent;

public class TouchRotateActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);

// Create our Preview view and set it as the content of our
// Activity
mGLSurfaceView = new TouchSurfaceView(this);
setContentView(mGLSurfaceView);
mGLSurfaceView.requestFocus();
mGLSurfaceView.setFocusableInTouchMode(true);
}

@Override
protected void onResume() {
// Ideally a game should implement onResume() and onPause()
// to take appropriate action when the activity looses focus
super.onResume();
mGLSurfaceView.onResume();
}

@Override
protected void onPause() {
// Ideally a game should implement onResume() and onPause()
// to take appropriate action when the activity looses focus
super.onPause();
mGLSurfaceView.onPause();
}

private GLSurfaceView mGLSurfaceView;
}

/**
* Implement a simple rotation control.
*
*/
class TouchSurfaceView extends GLSurfaceView {

public TouchSurfaceView(Context context) {
super(context);
mRenderer = new CubeRenderer();
setRenderer(mRenderer);
setRenderMode(GLSurfaceView.RENDERMODE_WHEN_DIRTY);
}

@Override public boolean onTrackballEvent(MotionEvent e) {
mRenderer.mAngleX += e.getX() * TRACKBALL_SCALE_FACTOR;
mRenderer.mAngleY += e.getY() * TRACKBALL_SCALE_FACTOR;
requestRender();
return true;
}

@Override public boolean onTouchEvent(MotionEvent e) {
float x = e.getX();
float y = e.getY();
switch (e.getAction()) {
case MotionEvent.ACTION_MOVE:
float dx = x - mPreviousX;
float dy = y - mPreviousY;
mRenderer.mAngleX += dx * TOUCH_SCALE_FACTOR;
mRenderer.mAngleY += dy * TOUCH_SCALE_FACTOR;
requestRender();
}
mPreviousX = x;
mPreviousY = y;
return true;
}

/**
* Render a cube.
*/
private class CubeRenderer implements GLSurfaceView.Renderer {
public CubeRenderer() {
mCube = new Cube();
}

public void onDrawFrame(GL10 gl) {
/*
* Usually, the first thing one might want to do is to clear
* the screen. The most efficient way of doing this is to use
* glClear().
*/

gl.glClear(GL10.GL_COLOR_BUFFER_BIT | GL10.GL_DEPTH_BUFFER_BIT);

/*
* Now we're ready to draw some 3D objects
*/

gl.glMatrixMode(GL10.GL_MODELVIEW);
gl.glLoadIdentity();
gl.glTranslatef(0, 0, -3.0f);
gl.glRotatef(mAngleX, 0, 1, 0);
gl.glRotatef(mAngleY, 1, 0, 0);

gl.glEnableClientState(GL10.GL_VERTEX_ARRAY);
gl.glEnableClientState(GL10.GL_COLOR_ARRAY);

mCube.draw(gl);
}

public void onSurfaceChanged(GL10 gl, int width, int height) {
gl.glViewport(0, 0, width, height);

/*
* Set our projection matrix. This doesn't have to be done
* each time we draw, but usually a new projection needs to
* be set when the viewport is resized.
*/

float ratio = (float) width / height;
gl.glMatrixMode(GL10.GL_PROJECTION);
gl.glLoadIdentity();
gl.glFrustumf(-ratio, ratio, -1, 1, 1, 10);
}

public void onSurfaceCreated(GL10 gl, EGLConfig config) {
/*
* By default, OpenGL enables features that improve quality
* but reduce performance. One might want to tweak that
* especially on software renderer.
*/
gl.glDisable(GL10.GL_DITHER);

/*
* Some one-time OpenGL initialization can be made here
* probably based on features of this particular context
*/
gl.glHint(GL10.GL_PERSPECTIVE_CORRECTION_HINT,
GL10.GL_FASTEST);


gl.glClearColor(1,1,1,1);
gl.glEnable(GL10.GL_CULL_FACE);
gl.glShadeModel(GL10.GL_SMOOTH);
gl.glEnable(GL10.GL_DEPTH_TEST);
}
private Cube mCube;
public float mAngleX;
public float mAngleY;
}

private final float TOUCH_SCALE_FACTOR = 180.0f / 320;
private final float TRACKBALL_SCALE_FACTOR = 36.0f;
private CubeRenderer mRenderer;
private float mPreviousX;
private float mPreviousY;
}

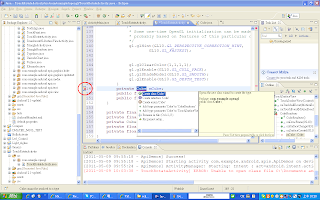

3. 點擊下圖紅圈建立新的Cube類別。

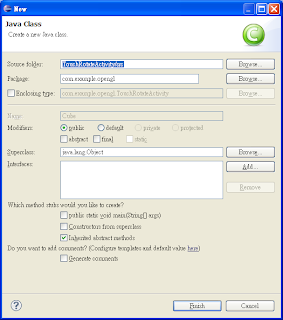

4. 按下下圖finish鍵來建立新的Cube類別。

5. 把在Google Android SDK所附的範例ApiDemo內的com.example.android.apis.graphics套件中的Cube.java的程式複製到新專案所產生的程式中,完整程式如下:

package com.example.opengl;

import java.nio.ByteBuffer;
import java.nio.ByteOrder;
import java.nio.IntBuffer;

import javax.microedition.khronos.opengles.GL10;

public class Cube {
public Cube()
{
int one = 0x10000;
int vertices[] = {
-one, -one, -one,
one, -one, -one,
one, one, -one,
-one, one, -one,
-one, -one, one,
one, -one, one,
one, one, one,
-one, one, one,
};

int colors[] = {
0, 0, 0, one,
one, 0, 0, one,
one, one, 0, one,
0, one, 0, one,
0, 0, one, one,
one, 0, one, one,
one, one, one, one,
0, one, one, one,
};

byte indices[] = {
0, 4, 5, 0, 5, 1,
1, 5, 6, 1, 6, 2,
2, 6, 7, 2, 7, 3,
3, 7, 4, 3, 4, 0,
4, 7, 6, 4, 6, 5,
3, 0, 1, 3, 1, 2
};

// Buffers to be passed to gl*Pointer() functions
// must be direct, i.e., they must be placed on the
// native heap where the garbage collector cannot
// move them.
//
// Buffers with multi-byte datatypes (e.g., short, int, float)
// must have their byte order set to native order

ByteBuffer vbb = ByteBuffer.allocateDirect(vertices.length*4);
vbb.order(ByteOrder.nativeOrder());
mVertexBuffer = vbb.asIntBuffer();
mVertexBuffer.put(vertices);
mVertexBuffer.position(0);

ByteBuffer cbb = ByteBuffer.allocateDirect(colors.length*4);
cbb.order(ByteOrder.nativeOrder());
mColorBuffer = cbb.asIntBuffer();
mColorBuffer.put(colors);
mColorBuffer.position(0);

mIndexBuffer = ByteBuffer.allocateDirect(indices.length);
mIndexBuffer.put(indices);
mIndexBuffer.position(0);
}

public void draw(GL10 gl)
{
gl.glFrontFace(gl.GL_CW);
gl.glVertexPointer(3, gl.GL_FIXED, 0, mVertexBuffer);
gl.glColorPointer(4, gl.GL_FIXED, 0, mColorBuffer);
gl.glDrawElements(gl.GL_TRIANGLES, 36, gl.GL_UNSIGNED_BYTE, mIndexBuffer);
}

private IntBuffer mVertexBuffer;
private IntBuffer mColorBuffer;
private ByteBuffer mIndexBuffer;
}


6. 執行結果,記得利用觸控功能來觀察立方體。

[ Android OpenGL ES 教學(五)] 貼皮技術

基礎閱讀:[ Android OpenGL ES 教學(四)] 添加顏色轉換相關方法 發表在 http://cheng-min-i-taiwan.blogspot.com/2011/05/android-opengl-es.html
延伸閱讀:[ Android OpenGL ES 教學(六)] 觸控控制 發表在
http://cheng-min-i-taiwan.blogspot.com/2011/05/android-opengl-es_498.html
參考文章:OpenGL ES Tutorial for Android – Part VI – Textures 發表在http://blog.jayway.com/2010/12/30/opengl-es-tutorial-for-android-%E2%80%93-part-vi-textures/

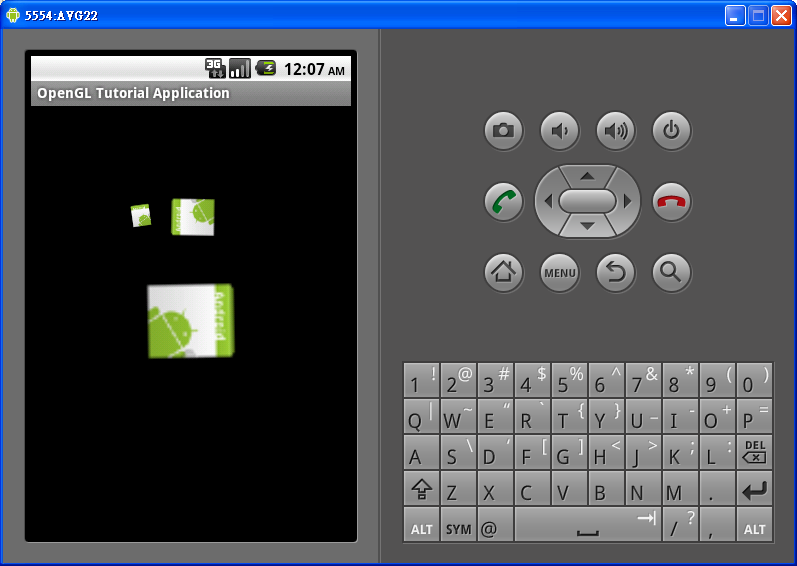

貼皮後的結果


貼皮後的結果(含顏色對映處理)


貼皮除了要載入一張位元圖外,在貼皮質地使用的坐標要特別注意


社員可以試著改變質地坐標中的數值,可以達到放大或縮小位元圖的目的。

OpenGLActivity.java 程式列表
package nkut.cce.smartliving.opengl;

import android.app.Activity;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.opengl.GLSurfaceView;
import android.os.Bundle;

public class OpenGLActivity extends Activity {
/** Called when the activity is first created. */

@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
GLSurfaceView view = new GLSurfaceView(this);
OpenGLRenderer render = new OpenGLRenderer();

// 載入位元圖
Bitmap bitmap = BitmapFactory.decodeResource(getResources(),
R.drawable.icon);
render.setBitmap(bitmap);

view.setRenderer(render);


setContentView(view);
}
}

OpenGLRender.java程式列表

package nkut.cce.smartliving.opengl;

import javax.microedition.khronos.egl.EGLConfig;
import javax.microedition.khronos.opengles.GL10;

import android.graphics.Bitmap;
import android.opengl.GLSurfaceView.Renderer;
import android.opengl.GLU;

public class OpenGLRenderer implements Renderer {
private Square square;
private float angle = 0;

public OpenGLRenderer() {
// 初始化
square = new Square();
}

@Override
public void onDrawFrame(GL10 gl) {
// TODO Auto-generated method stub
// 清除螢幕和深度緩衝區
gl.glClear(GL10.GL_COLOR_BUFFER_BIT | GL10.GL_DEPTH_BUFFER_BIT);
// 以單位矩陣取代目前的矩陣
gl.glLoadIdentity();
// Z軸轉置 10 單位
gl.glTranslatef(0, 0, -10);

// 第一個方形
// 存儲目前陣列
gl.glPushMatrix();
// 反時鐘旋轉
gl.glRotatef(angle, 0, 0, 1);
// 畫出第一個方形
square.draw(gl);
// 復原成最後的矩陣
gl.glPopMatrix();

// 第二個方形
// 存儲目前陣列
gl.glPushMatrix();
// 在移動前先旋轉, 讓第二個方形圍繞著第一個方形旋轉
gl.glRotatef(-angle, 0, 0, 1);
// 移動第二個方形
gl.glTranslatef(2, 0, 0);
// 調整其大小為第一個方形的一半
gl.glScalef(.5f, .5f, .5f);
// 畫出第二個方形
square.draw(gl);

// 第三個方形
// 存儲目前陣列
gl.glPushMatrix();
// 讓第三個方形圍繞著第二個方形旋轉
gl.glRotatef(-angle, 0, 0, 1);
// 移動第三個方形
gl.glTranslatef(2, 0, 0);
// 調整其大小為第二個方形的一半
gl.glScalef(.5f, .5f, .5f);
// 以自己為中心旋轉
gl.glRotatef(angle * 10, 0, 0, 1);
// 畫出第三個方形.
square.draw(gl);

// 復原成第三個方形前的矩陣
gl.glPopMatrix();
// 復原成第二個方形前的矩陣.
gl.glPopMatrix();

// 增加角度
angle++;
}

@Override
public void onSurfaceChanged(GL10 gl, int width, int height) {
// TODO Auto-generated method stub
// 設定新視域視窗的大小
gl.glViewport(0, 0, width, height);
// 選擇投射的陣列模式
gl.glMatrixMode(GL10.GL_PROJECTION);
// 重設投射陣
gl.glLoadIdentity();
// 計算視窗的寬高比率
GLU.gluPerspective(gl, 45.0f, (float) width / (float) height, 0.1f,
100.0f);
// 選擇MODELVIEW陣列
gl.glMatrixMode(GL10.GL_MODELVIEW);
// 重設MODELVIEW陣列
gl.glLoadIdentity();
}

@Override
public void onSurfaceCreated(GL10 gl, EGLConfig config) {
// TODO Auto-generated method stub
// 設定背景顏色為黑色, 格式是RGBA
gl.glClearColor(0.0f, 0.0f, 0.0f, 0.5f);
// 設定流暢的陰影模式
gl.glShadeModel(GL10.GL_SMOOTH);
// 深度緩區的設定
gl.glClearDepthf(1.0f);
// 啟動深度的測試
gl.glEnable(GL10.GL_DEPTH_TEST);
// GL_LEQUAL深度函式測試
gl.glDepthFunc(GL10.GL_LEQUAL);
// 設定很好的角度計算模式
gl.glHint(GL10.GL_PERSPECTIVE_CORRECTION_HINT, GL10.GL_NICEST);
}

public void setBitmap(Bitmap bitmap) {
// TODO Auto-generated method stub
square.setBitmap(bitmap);
}

}

square.java程式列表

package nkut.cce.smartliving.opengl;

import java.nio.ByteBuffer;
import java.nio.ByteOrder;
import java.nio.FloatBuffer;
import java.nio.ShortBuffer;

import javax.microedition.khronos.opengles.GL10;

import android.graphics.Bitmap;
import android.opengl.GLUtils;

public class Square {
// 點的陣列
private float vertices[] = { -1.0f, 1.0f, 0.0f, // 0, 左上角
-1.0f, -1.0f, 0.0f, // 1, 左下角
1.0f, -1.0f, 0.0f, // 2, 右下角
1.0f, 1.0f, 0.0f, // 3, 右上角
};

// 將顏色資訊對應到點陣列上
float[] colors = { 1f, 0f, 0f, 1f, // 左上角 0 red
0f, 1f, 0f, 1f, // 左下角 1 green
0f, 0f, 1f, 1f, // 右下角 2 blue
1f, 0f, 1f, 1f, // 右上角 3 magenta
};

// 質地坐標
float texture[] = { 0.0f, 0.0f, //
0.0f, 1.0f, //
1.0f, 1.0f, //
1.0f, 0.0f, //
};

// 連接點的次序
private short[] indices = { 0, 1, 2, 0, 2, 3 };

// 點的緩衝區
private FloatBuffer vertexBuffer;

// 索引值緩衝區
private ShortBuffer indexBuffer;

// 顏色緩衝區
private FloatBuffer colorBuffer;

// 質地緩衝區
private FloatBuffer textureBuffer;

Bitmap bitmap;


public Square() {
// 浮點數是4位元組因此需要把點陣列長度乘以4
ByteBuffer vbb = ByteBuffer.allocateDirect(vertices.length * 4);
vbb.order(ByteOrder.nativeOrder());
vertexBuffer = vbb.asFloatBuffer();
vertexBuffer.put(vertices);
vertexBuffer.position(0);

// 短整數是2位元組因此需要把點陣列長度乘以2
ByteBuffer ibb = ByteBuffer.allocateDirect(indices.length * 2);
ibb.order(ByteOrder.nativeOrder());
indexBuffer = ibb.asShortBuffer();
indexBuffer.put(indices);
indexBuffer.position(0);

// 浮點數是4位元組,顏色(RGBA)
ByteBuffer cbb = ByteBuffer.allocateDirect(colors.length * 4);
cbb.order(ByteOrder.nativeOrder());
colorBuffer = cbb.asFloatBuffer();
colorBuffer.put(colors);
colorBuffer.position(0);

ByteBuffer byteBuf = ByteBuffer.allocateDirect(texture.length * 4);
byteBuf.order(ByteOrder.nativeOrder());
textureBuffer = byteBuf.asFloatBuffer();
textureBuffer.put(texture);
textureBuffer.position(0);

}

/**
* 畫圖函式
*
* @param gl
*/
public void draw(GL10 gl) {
// 逆時鐘
gl.glFrontFace(GL10.GL_CCW);
// 啟動CULL_FACE
gl.glEnable(GL10.GL_CULL_FACE);
// 刪除多邊形的背景
gl.glCullFace(GL10.GL_BACK);

// 啟動點的緩衝區
gl.glEnableClientState(GL10.GL_VERTEX_ARRAY);
// 指定位置和資料格式
gl.glVertexPointer(3, GL10.GL_FLOAT, 0, vertexBuffer);

// 在渲染期間啟用顏色緩衝區
gl.glEnableClientState(GL10.GL_COLOR_ARRAY);

// 指定顏色緩衝區。
gl.glColorPointer(4, GL10.GL_FLOAT, 0, colorBuffer);

// 建立質地陣列
int[] textures = new int[1];
// 告訴OpenGL產生第幾個質地
gl.glGenTextures(1, textures, 0);

// 指定要用那一質地
gl.glBindTexture(GL10.GL_TEXTURE_2D, textures[0]);

// 載入質地位元圖
GLUtils.texImage2D(GL10.GL_TEXTURE_2D, 0, bitmap, 0);

// 啟動質地功能
gl.glEnable(GL10.GL_TEXTURE_2D);

// 使用UV坐標
gl.glEnableClientState(GL10.GL_TEXTURE_COORD_ARRAY);

// 指定質地緩衝區
gl.glTexCoordPointer(2, GL10.GL_FLOAT, 0, textureBuffer);
// 以三點劃出三角形
gl.glDrawElements(GL10.GL_TRIANGLES, indices.length,
GL10.GL_UNSIGNED_SHORT, indexBuffer);

// 除能點的緩衝區
gl.glDisableClientState(GL10.GL_VERTEX_ARRAY);
// 除能CULL_FACE
gl.glDisable(GL10.GL_CULL_FACE);

// 除能UV坐標
gl.glDisableClientState(GL10.GL_TEXTURE_COORD_ARRAY);

// 除能質地的使用
gl.glDisable(GL10.GL_TEXTURE_2D);
}

public void setBitmap(Bitmap bitmap) {
// TODO Auto-generated method stub
this.bitmap = bitmap;
}
}


2011年5月8日 星期日

[ Android OpenGL ES 教學(四)] 添加顏色

基礎閱讀:[ Android OpenGL ES 教學(三)] 轉換相關方法 發表在http://cheng-min-i-taiwan.blogspot.com/2011/04/android-opengl-es_3388.html
延伸閱讀:[ Android OpenGL ES 教學(五)] 貼皮技術 發表在 http://cheng-min-i-taiwan.blogspot.com/2011/05/android-opengl-es_09.html
參考文章:OpenGL ES Tutorial for Android – Part IV – Adding colors 發表在http://blog.jayway.com/2010/01/14/opengl-es-tutorial-for-android-%E2%80%93-part-iv-adding-colors/

今天試著從參考文章中學習如何在三個旋轉的四方形上添加顏色


首先您必須宣告一個顏色的陣列來對映到四邊形的四個角,每一個角的顏色都包括紅,藍,綠,及透明度的資訊, 其宣告如下:
// 將顏色資訊對應到點陣列上
float[] colors = { 1f, 0f, 0f, 1f, // 左上角 0 red
0f, 1f, 0f, 1f, // 左下角 1 green
0f, 0f, 1f, 1f, // 右下角 2 blue
1f, 0f, 1f, 1f, // 右上角 3 magenta
};

另外也必須宣告一個儲存顏色的浮點緩衝區
// 顏色緩衝區
private FloatBuffer colorBuffer;

把顏色的資訊放到衝區中
// 浮點數是4位元組,顏色(RGBA) * 4 位元組
ByteBuffer cbb = ByteBuffer.allocateDirect(colors.length * 4);
cbb.order(ByteOrder.nativeOrder());
colorBuffer = cbb.asFloatBuffer();
colorBuffer.put(colors);
colorBuffer.position(0);

最後在畫出四方形前將顏色緩衝區打開並指定顏色緩衝區。
// 在渲染期間啟用顏色緩衝區
gl.glEnableClientState(GL10.GL_COLOR_ARRAY);

// 指定顏色緩衝區。
gl.glColorPointer(4, GL10.GL_FLOAT, 0, colorBuffer);

以下是Square.java完整的列表, 粗體字表示新增部份

import java.nio.ByteBuffer;
import java.nio.ByteOrder;
import java.nio.FloatBuffer;
import java.nio.ShortBuffer;

import javax.microedition.khronos.opengles.GL10;

public class Square {
// 點的陣列
private float vertices[] = { -1.0f, 1.0f, 0.0f, // 0, 左上角
-1.0f, -1.0f, 0.0f, // 1, 左下角
1.0f, -1.0f, 0.0f, // 2, 右下角
1.0f, 1.0f, 0.0f, // 3, 右上角
};

// 將顏色資訊對應到點陣列上
float[] colors = { 1f, 0f, 0f, 1f, // 左上角 0 red
0f, 1f, 0f, 1f, // 左下角 1 green
0f, 0f, 1f, 1f, // 右下角 2 blue
1f, 0f, 1f, 1f, // 右上角 3 magenta
};


// 連接點的次序
private short[] indices = { 0, 1, 2, 0, 2, 3 };

// 點的緩衝區
private FloatBuffer vertexBuffer;

// 索引值緩衝區
private ShortBuffer indexBuffer;

// 顏色緩衝區
private FloatBuffer colorBuffer;


public Square() {
// 浮點數是4位元組因此需要把點陣列長度乘以4
ByteBuffer vbb = ByteBuffer.allocateDirect(vertices.length * 4);
vbb.order(ByteOrder.nativeOrder());
vertexBuffer = vbb.asFloatBuffer();
vertexBuffer.put(vertices);
vertexBuffer.position(0);

// 短整數是2位元組因此需要把點陣列長度乘以2
ByteBuffer ibb = ByteBuffer.allocateDirect(indices.length * 2);
ibb.order(ByteOrder.nativeOrder());
indexBuffer = ibb.asShortBuffer();
indexBuffer.put(indices);
indexBuffer.position(0);

// 浮點數是4位元組,顏色(RGBA) * 4 位元組
ByteBuffer cbb = ByteBuffer.allocateDirect(colors.length * 4);
cbb.order(ByteOrder.nativeOrder());
colorBuffer = cbb.asFloatBuffer();
colorBuffer.put(colors);
colorBuffer.position(0);

}

/**
* 畫圖函式
*
* @param gl
*/
public void draw(GL10 gl) {
// 逆時鐘
gl.glFrontFace(GL10.GL_CCW);
// 啟動CULL_FACE
gl.glEnable(GL10.GL_CULL_FACE);
// 刪除多邊形的背景
gl.glCullFace(GL10.GL_BACK);

// 啟動點的緩衝區
gl.glEnableClientState(GL10.GL_VERTEX_ARRAY);
// 指定位置和資料格式
gl.glVertexPointer(3, GL10.GL_FLOAT, 0, vertexBuffer);

// 在渲染期間啟用顏色緩衝區
gl.glEnableClientState(GL10.GL_COLOR_ARRAY);

// 指定顏色緩衝區。
gl.glColorPointer(4, GL10.GL_FLOAT, 0, colorBuffer);


// 以三點劃出三角形
gl.glDrawElements(GL10.GL_TRIANGLES, indices.length,
GL10.GL_UNSIGNED_SHORT, indexBuffer);

// 除能點的緩衝區
gl.glDisableClientState(GL10.GL_VERTEX_ARRAY);
// 除能CULL_FACE
gl.glDisable(GL10.GL_CULL_FACE);
}
}
